Description

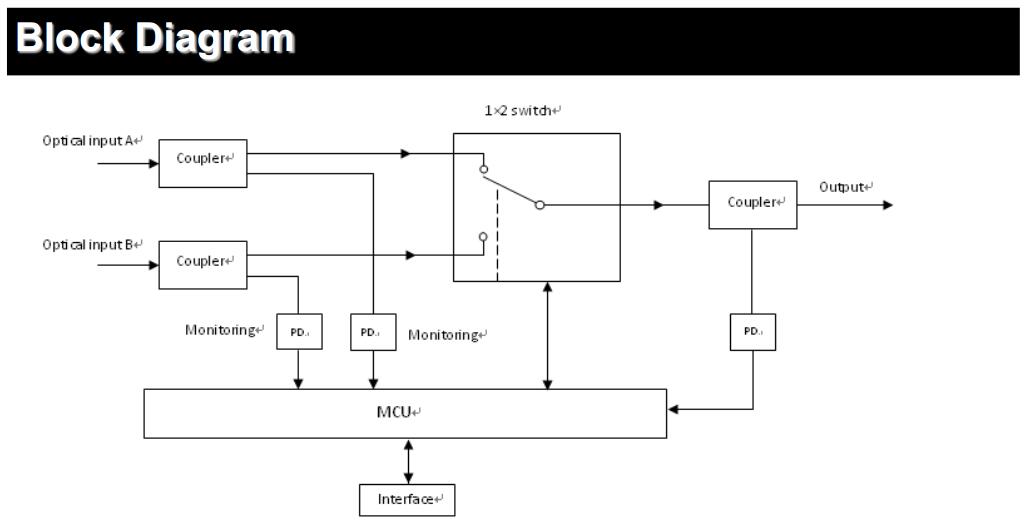

GSDT-OSW is a rack mount, A/B Style optical switch. It provides users monitoring and switching capabilities for fiber networks. The Model automatically switches from the primary optical source to the secondary optical source whenever the primary source is interrupted. The user can set the threshold criteria to decide when a switch occurs. After a switch has occurred, when the primary source again exceeds the user-defined threshold, normal (un-switched) operation is resumed. An alarm informs the user when either the primary or secondary input levels fall below the preset limit.

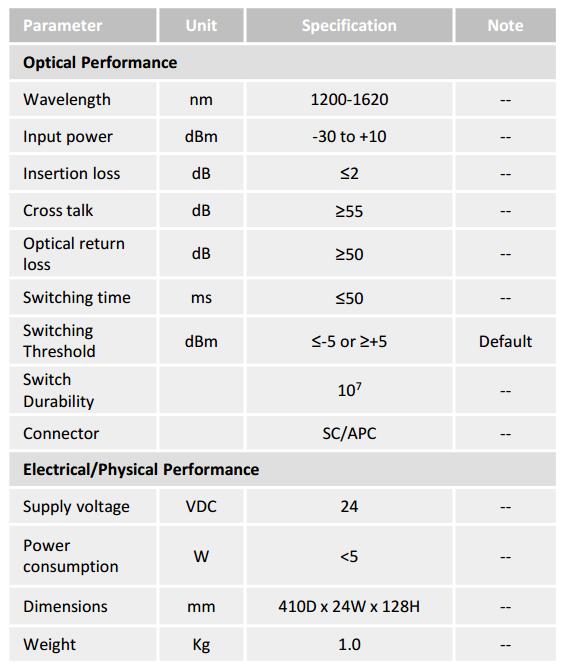

Specifications
Features
■ Hot swap plug-in module
■ 1200nm to 1620nm optical wavelength to receive
■ Optical power monitoring for automatic switching
■ Front panel switch for A/B or automatic operation
■ Alarm indicates loss of either input power
■ Front panel LEDs indicate the status of the switch and input levels
■ Local and remote software for status monitoring

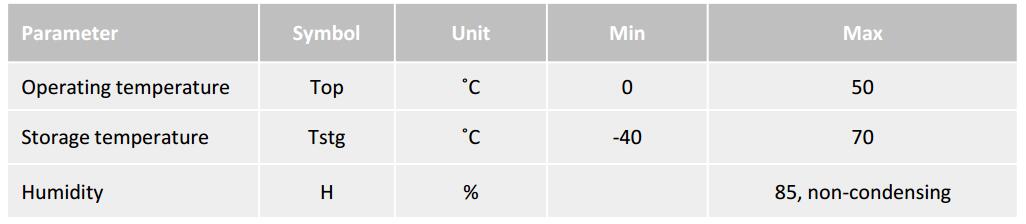

Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these conditions. Exposure to absolute maximum ratings for extended periods can adversely affect device reliability.
